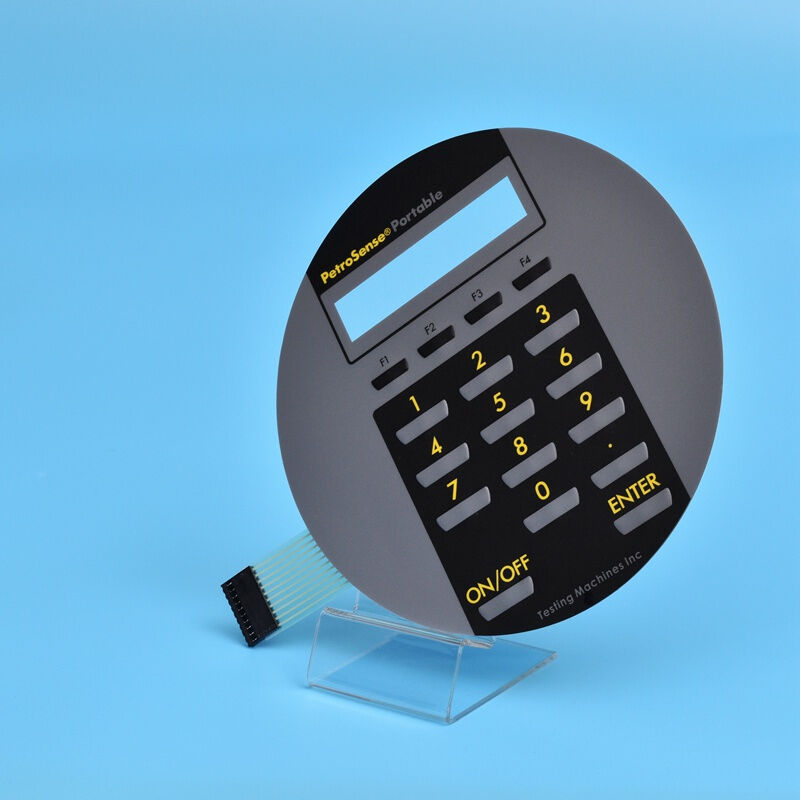

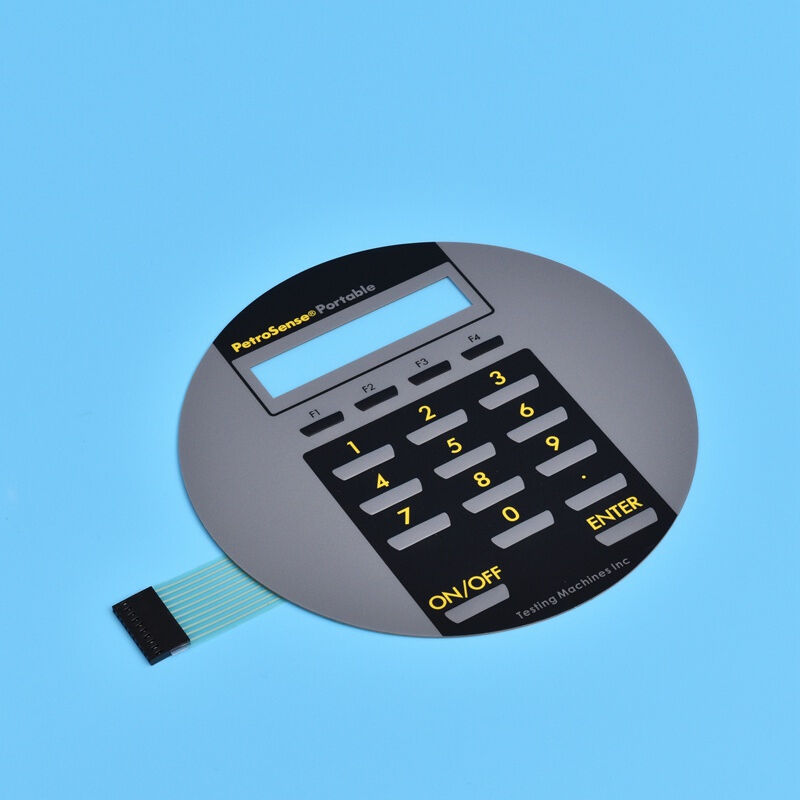

Electric Board Flexible PCB Printing Circuit Board
Electric Board Flexible PCB Printing Circuit Board
We specialize in comprehensive production processing with system integrity and stable technical personnel. Our company provides complete one-stop service solutions for flexible PCB manufacturing.
Product Structure & Layers
- Overlay
- Overlay adhesive
- Dome retainer
- Metal dome
- Spacer adhesive
- Circuit
- Rear adhesive (customizable per request)
Production Capabilities
Our comprehensive manufacturing facility includes:
- Screen Print Department
- IR Tunnel & IR Oven
- Thickness Tester
- Laser Cutting Machine
- Punching Department
- Emboss Key Section
- Assembly Line
- Electric Testing
- OQC Department
- Virtual Aspect Testing
- Punch Machine Department
- PU Coating Section
Technical Specifications
| Parameter | Specification |
|---|---|
| Wire Resistance | ≤ 1 Ohm/cm |
| Current Rating | 25-100mA, 0-30V DC |
| Work Voltage | ≤ 50V DC |
| Insulation Voltage | ≤ 100M Ohm 250V DC |
| Working Life | ≤ One Million Times |
| Work Temperature | -40°C to 70°C |
| Work Humidity | 40°C ≤ 98%RH |
| Basic Material Pressurization | 1500V DC |
Membrane Switch Features
- Membrane Switch with windows
- Touch feeling keys with embossing
- Silk Screen Printing
- Perfect exterior finish
- Over 1 million life cycle
Product Details
| Place of Origin | Dong Guan, China |
| Brand Name | Foundation |
| Model Number | HC-MS-002 |
| Certification | ISO9001:2008, SGS, Rohs |
Materials
- Material: PET / PC
- Adhesive: 3M467 & 3M468 or as per request
- High lifetime: >1 million times
- Certifications: ISO9001:2008, RoHS, SGS
- High quality construction
Commercial Terms
| MOQ | 50pcs |
| Payment Terms | T/T or L/C |
| Mold Charge | 100% in Advance |
| Sample Time | 9-10 days after drawing approval |
| Lead Time for Production | 15-22 days after sample approval |
Applications
Our membrane switches are widely used in:
- Medical Equipment
- Telecommunications apparatus
- Telephone systems
- Household appliances
- Security systems
- Industrial controls
Detailed Specifications
| Wire Lead Resistance | < 1Ω/CM | Life Time | > 1 Million times |
| Rated Current | 25-100mA, 0~30V DC | Operation Temperature | -40ºC ~ 70ºC |
| Rated Voltage | < 50V, DC | Operation Humidity | at 40ºC, < 98%RH |
| Insulation Resistance | < 100MΩ, 250V DC | Dome Springback Time | < 5 msec |
| Switch Travel (Flat Type) | 0.05-0.3mm | Base Material Voltage Withstand | 1500 V DC |
| Switch Travel (Tactile Type) | 0.3-1.5mm | Tail Flexibility | Any angle within 180 degree |
Company Advantages
Experienced Leadership
Top managers with extensive experience in the same field
Top managers with extensive experience in the same field
Professional Team
Skilled staff and dedicated workers
Skilled staff and dedicated workers
Strong R&D Capability
Advanced research and development resources
Advanced research and development resources
Quick Delivery
Efficient production and timely shipping
Efficient production and timely shipping
Competitive Pricing
Cost-effective solutions without compromising quality
Cost-effective solutions without compromising quality
Production Capacity
Two factories available for handling large orders
Two factories available for handling large orders
Expert Sales Team & Customer Service
Contact us for more information and detailed discussions about your specific requirements.
Contact us for more information and detailed discussions about your specific requirements.
