Mettre en évidence
flat printed LED circuit board
,dome switch membrane keyboard
,flexible membrane LED switch
-
Numéro de modèleHC-FPC-009
-
Mode combinéPlaque flexible adhésive
-
Adhésif conducteurPâte d'argent conductrice
-
IgnifugeHB
-
Technologie de traitementfeuille électrolytique
-
Matériau de baseAluminium
-
Matériaux d'isolationrésine organique
-
Dimensions7,81'' x 6,56''
-
Résistance des fils<1Ω/CM
-
Durée de vie>1 million de fois
-
Courant nominal25-100 mA, 0 ~ 30 V CC
-
Température de fonctionnement-40 ~ 70 ° C
-
Tension nominale<50 V, CC
-
Résistance d'isolation<100 MΩ, 250 V CC
-
Voyage de commutateurType plat 0,05-0,3 mm
-
Quantité de commande min100
-
Prix5.3
Flat Printed Electronic Circuit Board Dome LED Switch
Flat Printed Electronic Circuit Board Dome LED Switch
Product Type: Membrane Switch with LED
Manufacturing: Silk Screen Printing
Durability: Over 1 million life cycles
Finish: Perfect exterior design
Product Specifications
Electrical Specifications
Wire Lead Resistance: <1Ω/CM
Rated Current: 25-100mA, 0-30V DC
Rated Voltage: <50V DC
Insulation Resistance: <100MΩ, 250V DC
Performance Specifications
Life Time: >1 Million cycles
Operation Temperature: -40°C to 70°C (-104°F to 158°F)
Operation Humidity: at 40°C, <98% RH
Dome Springback Time: <5 msec
Mechanical Specifications
Switch Travel (Flat Type): 0.05-0.3mm
Switch Travel (Tactile Type): 0.3-1.5mm
Base Material Voltage Withstand: 1500 V DC
Tail Flexibility: Any angle within 180 degrees
Materials & Construction
Primary Material: PET / PC
Adhesive: 3M467 & 3M468 or as per request
Certifications: ISO9001:2008, SGS, RoHS compliant
Applications
- Medical Equipment
- Telecommunications Apparatus
- Telephone Systems
- Household Appliances
- Security Systems
- Industrial Controls
Commercial Terms
Minimum Order Quantity: 150 pieces
Payment Terms: T/T or L/C
Mold Charge: 100% in Advance
Sample Time: 9-10 days after drawing approval
Production Lead Time: 15-22 days after sample approval
Manufacturing Details
Place of Origin: Dong Guan, China
Brand Name: Foundation
Model Number: HC-MS-007
Company Advantages
- Experienced management team with extensive industry knowledge
- Professional staff and skilled workers
- Strong research and development capabilities
- Quick delivery and reliable turnaround times
- Competitive pricing structure
- Two factory locations available for large orders
- Expert sales team and comprehensive customer service

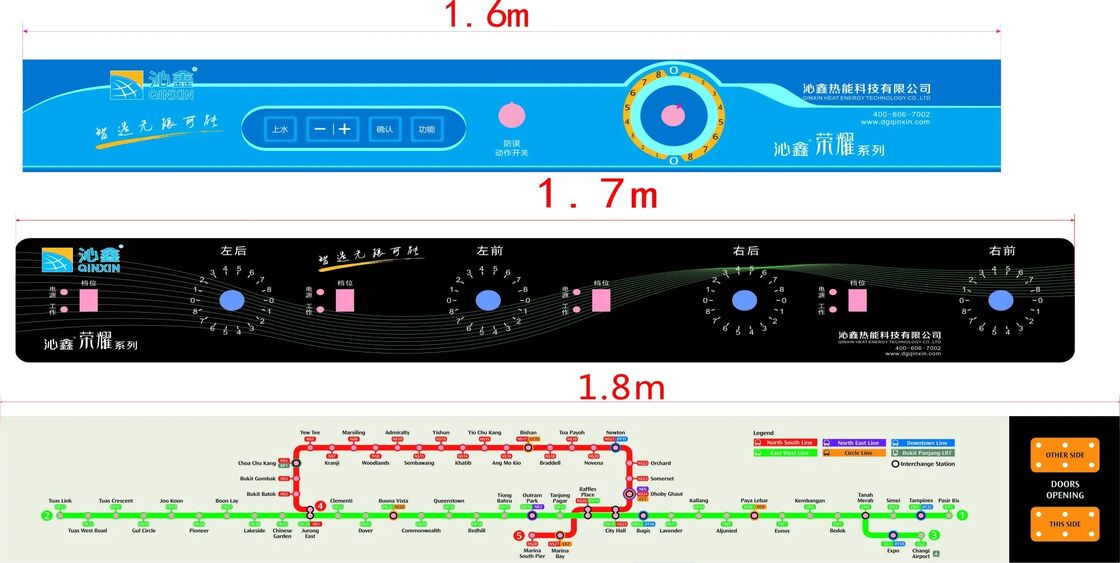

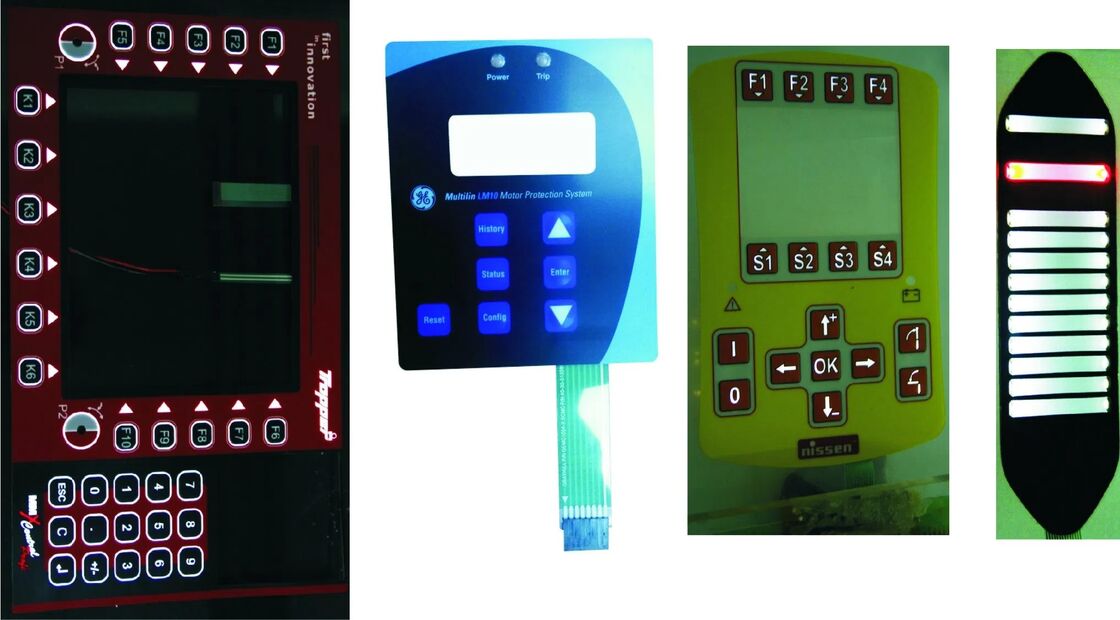

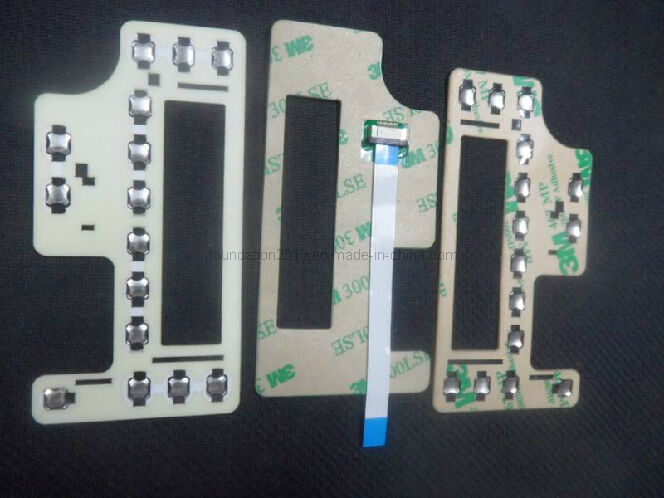

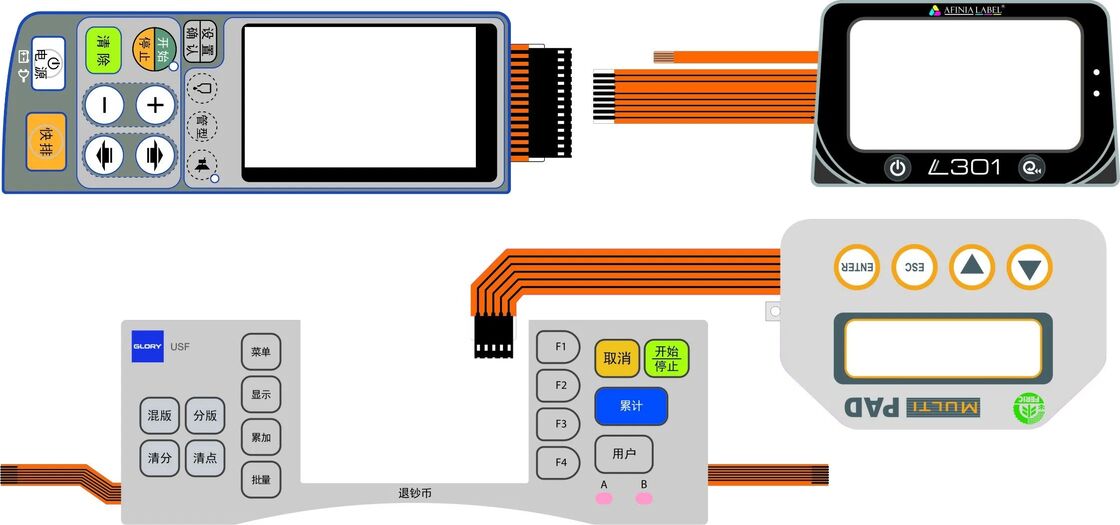

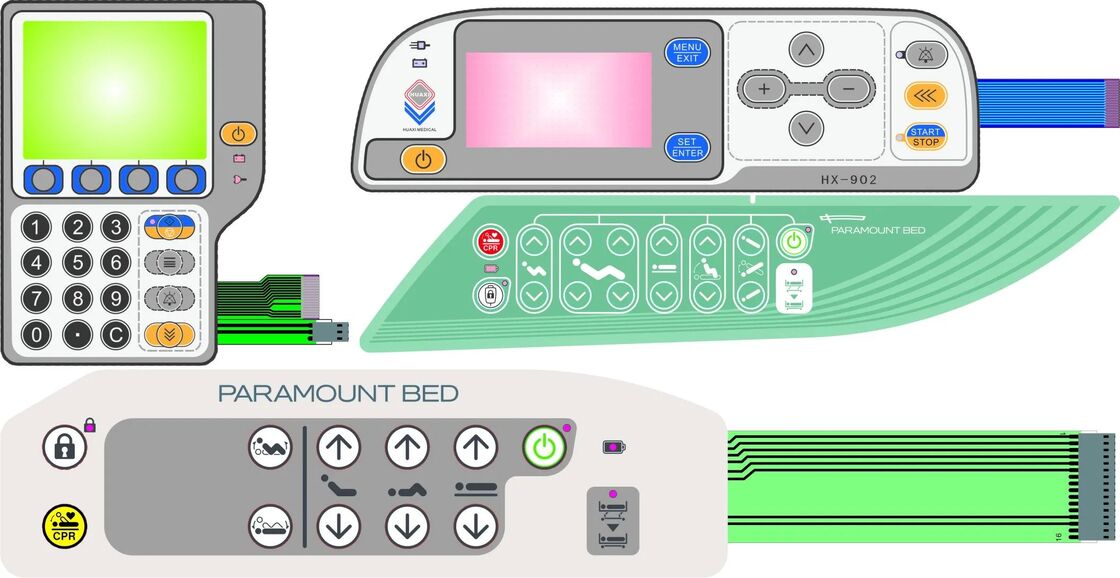

Product Images
